Designed by surgeons for surgeons, the LINK Embrace Shoulder System offers a state-of-the-art platform system that is ideally suited for almost all indications
in your daily practice.

All about embrace

EMBRACE YOUR POSSIBILITIES


Focused on modern and less-invasive shoulder care, its multiple options allow you to customize the system to meet your patients' individual needs and achieve the one important goal: to provide the best possible care for your patients.

View more videos

EXPLORE THE NEW WORLD OF SHOULDER SURGERY

Many years of experience with successful implant systems, fixation concepts and the latest material and coating technologies have been taken into account and applied in the design of the LINK Embrace Shoulder System.

Designed as a true platform system, it covers a broad range of indications from anatomic elective and fracture up to reverse treatment, conversion scenarios from anatomic to reverse (and back) and revision cases.

PLATFORM SYSTEM

SYSTEM OVERVIEW

STREAMLINED INSTRUMENTS

PLATFORM SYSTEM


Designed as a true platform system, it covers a broad range of indications from anatomic elective and fracture up to reverse treatment, conversion scenarios from anatomic to reverse (and back) and revision cases.

SYSTEM OVERVIEW


The LINK Embrace Shoulder System offers diverse fixation options suitable for the majority of patient populations and indications. A wide range of stems in various configurations allows for cemented and cementless fixation and different types of stemless cages offer less invasive options with considerable bone preservation potential.

Humeral components


All humeral components are designed according to the 'onlay' concept in which all meta- and epiphyseal parts are fixed on top of the humeral, intramedullary components. This allows for easy to apply, bone and soft-tissue sparing adaptions of the components to the desired configuration, aiming to reduced compromising or damaging the surrounding tissues.

Glenoid components


The glenoid components were designed specifically to address various treatment options depending on surgeon’s choice. The surgeon can choose from multiple options of cemented UHMWPE Glenoids, cementless Convertible Glenoids and Reverse Glenoid Baseplates. Various screw options, such as Central Bone Screws and up to 4 peripheral polyaxial/ locking Bone Screws in Reverse Glenoid Baseplates allow for appropriate component fixation. Glenospheres in three different diameters with eccentric option in both CoCr and UHMWPE are available for enhanced ROM and joint stability.

Conversion to reverse configuration


Designed according to a true platform concept, the LINK Embrace System allows for conversion from anatomic to reverse joint configuration without removing the intramedullar humeral components. Anatomic components, e.g. humeral heads, can be easily replaced with reverse components such as reverse trays and inserts. Thanks to their metal-back design, Convertible Glenoids can be adapted to reverse configurations and host a Glenosphere in the course of a revision.

STREAMLINED INSTRUMENTS


The LINK Embrace Shoulder System is implanted using a streamlined, lightweight and ergonomic instrument set, allowing for a straightforward workflow and high reproducibility. Multi-purpose instruments and elaborated trial components help to reduce the number of instruments and number of trays, thus enhancing the intra-operative handling and safety for both OR-staff, surgeons and patients.

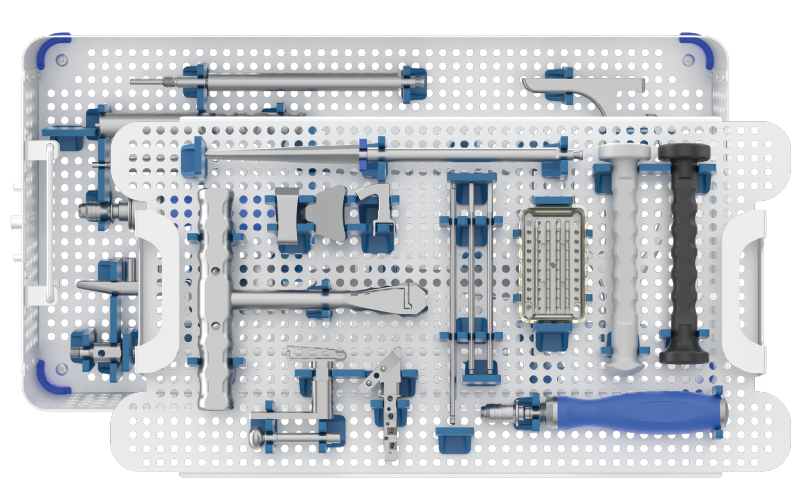

General Set

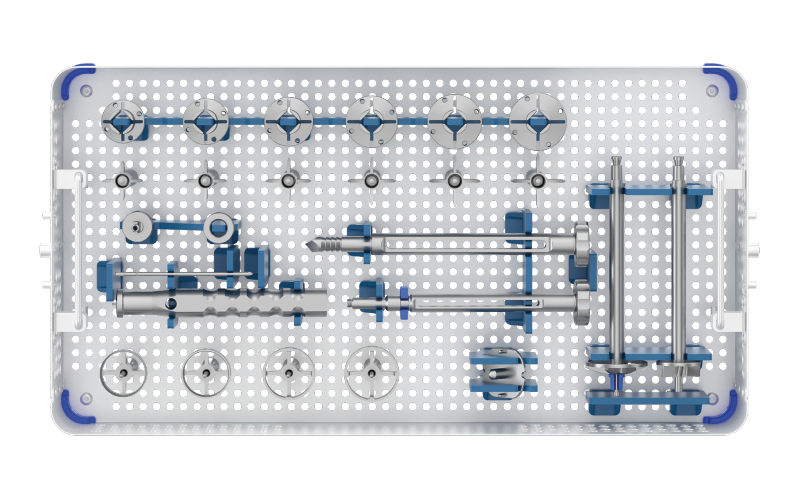

Stemless Set

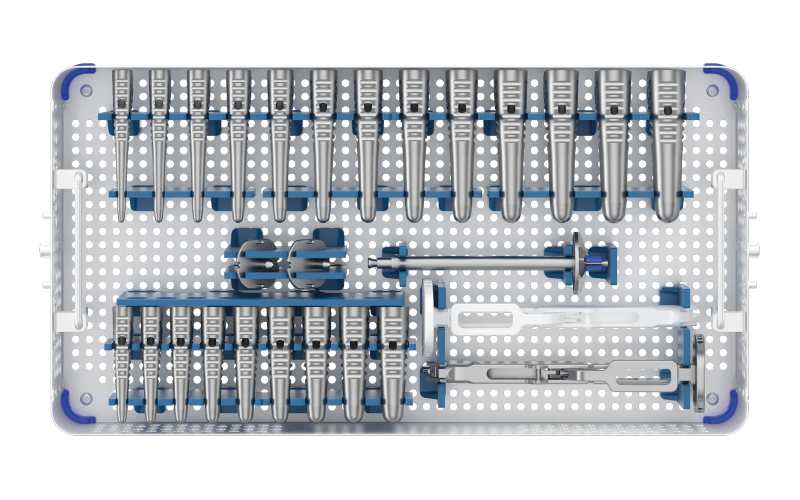

Short & Standard Stem Set

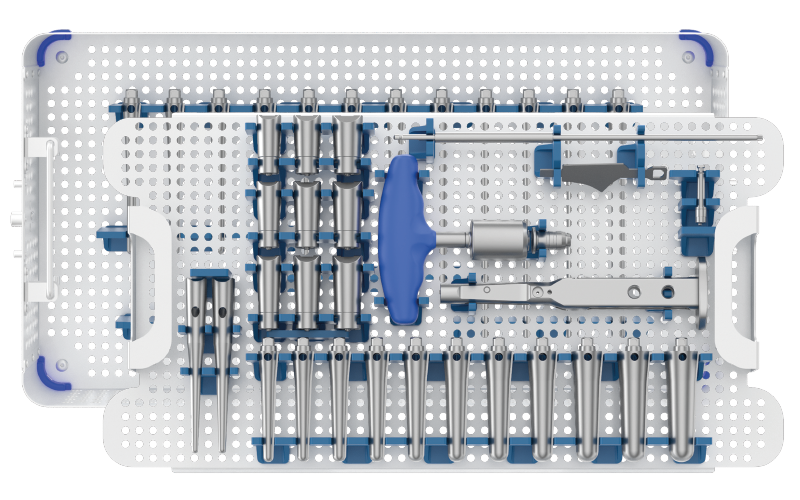

Modular Stem & Modular Revision Stem Set

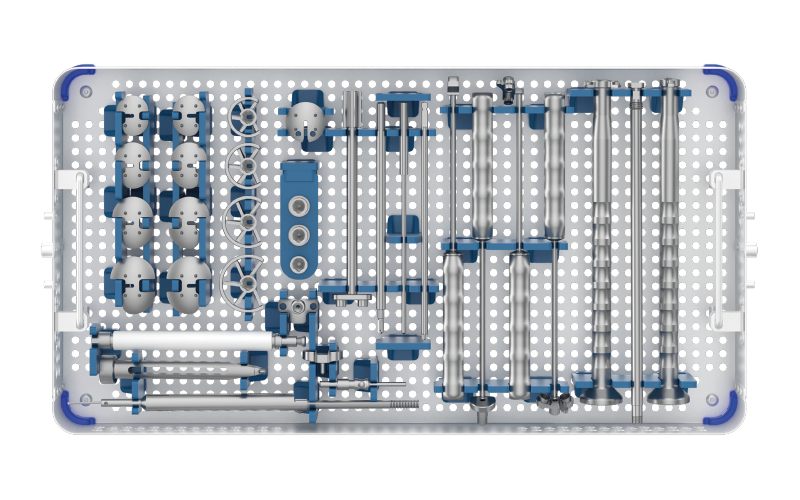

Glenoid Set

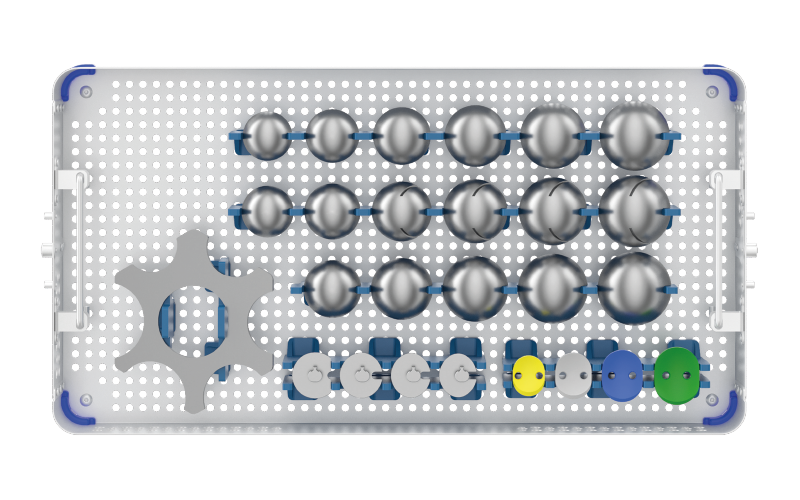

Anatomical Set

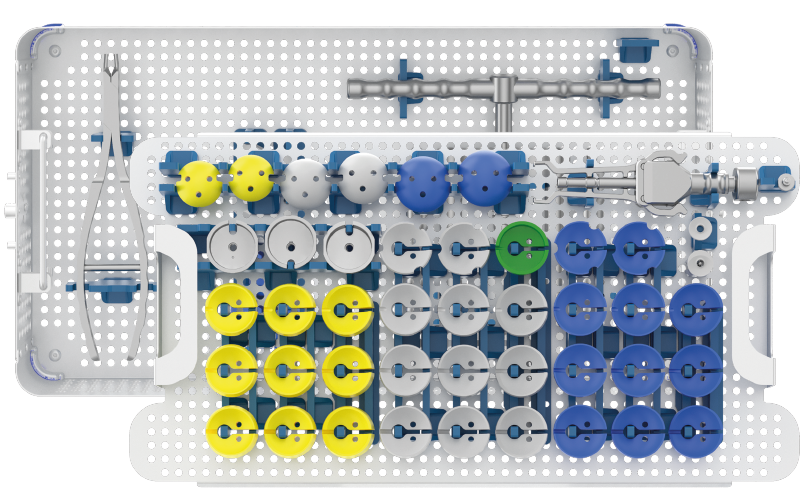

Reverse Set

DON´T FIGHT THE CHANGE. EMBRACE IT!

PATIENT CASES

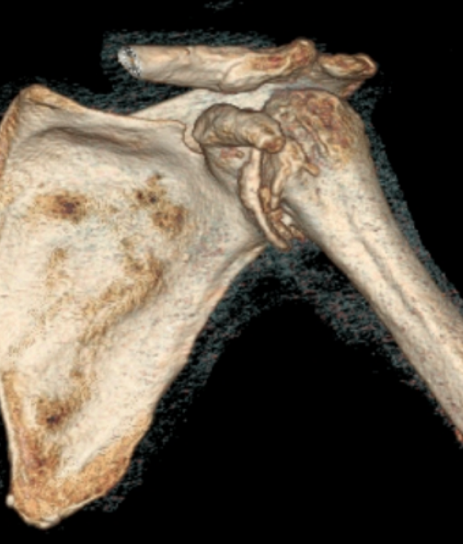

Dr. Stefan Pietsch

Patient Case from
Eisenberg, Germany

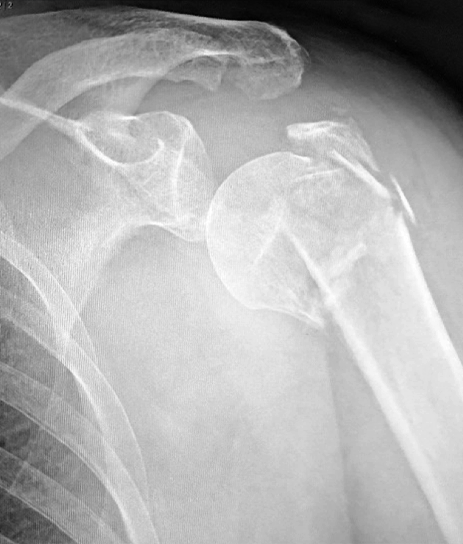

Dr. Guillem Claret Garcia

Patient Case from
Barcelona, Spain

Dr. Joerg Beardi

Patient Case from
Fulda, Germany


Dr. Nicola Ivaldo

Patient Case from
Italy


Dr. Miguel A. Ruiz Ibán

Patient Case from
Madrid, Spain


Dr. Pablo Cañete

Patient Case from
Valencia, Spain

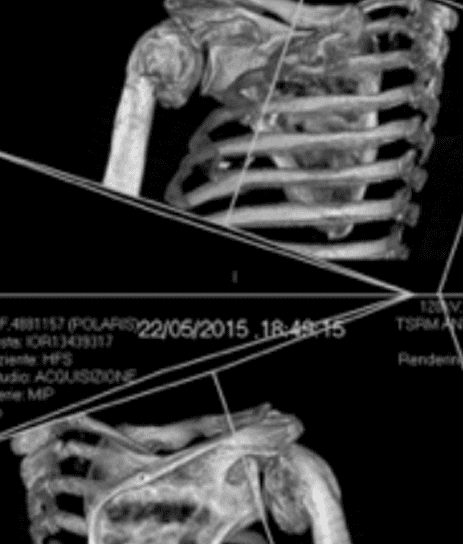

Dr. Enrico Guerra

Patient Case from
Bologna, Italy


PD Dr. Jörn Kircher

Patient Case from
Hamburg, Germany


Dr. Jörg Löwe

Patient Case from
Kiel, Germany


LINK Embrace Shoulder System & mediCAD® planning tool


Thanks to the cooperation of Waldemar Link and mediCAD users benefit from the merged expertise of both companies offering a comprehensive and reliable concept for patients and surgeons. mediCAD® 3D Shoulder is a powerful software solution that allows to easily create pre-op plans in 3D for any situation and indication in shoulder arthroplasty. Plan your case, choose your implants and execute your surgery with confidence and well prepared.

mediCAD® 3D Shoulder offers

  • Simple analysis of CT data and automatically created 3D models

  • Automatic and manual segmentation of the humerus for a perfect view on the glenoid

  • Automatic and manual determination of glenoid inclination and version as well as of the glenoid implant parts

  • Automatic resection of the humeral head

  • Easy integration in your clinical workflow

Want to discover more? Visit:

mediCAD Website

FAQs


Many years of experience with successful implant systems and fixation concepts as well as the latest material and coating technologies have been taken into account and applied in the design of the LINK Embrace Shoulder System. Designed as a true platform system, it covers a broad range of indications from anatomic elective and fracture up to reverse treatment, conversion scenarios from anatomic to reverse (and back) as well as revision cases.

The surgeon can select from various options of HX (CaP) coated stems for cementless fixation, as well as standard stems for cemented/ cementless fixation and a range of long modular stems for either cemented or cementless fixation. For glenoid treatment, UHMWPE glenoids are available for cemented fixation. Metal-backed glenoids, which are the Convertible Glenoid and the Reverse Glenoid Baseplate, come with a TrabecuLink surface, aiming at high primary stability and bone integration.

TrabecuLink is the registered trade name of a 3-dimensional structure and describes the surface of the implant. It is produced in an additive manufacturing process.

3D printing video
https://www.linkorthopaedics.com/de/fuer-den-arzt/flexicones-microsite/video

The pore geometry ensures excellent cell ongrowth.
https://www.linkorthopaedics.com/for-the-physician/products/product-filter?tx_apedvlinkproducts_productfilter%5Baction%5D=show&tx_apedvlinkproducts_productfilter%5Bproduct%5D=115&cHash=6f67bff10012a53800e268bc3eb1af50



Yes, the majority of the system components is cleared by the FDA for use in the US.

The LINK Embrace Shoulder System is based on an onlay concept philosophy designed to facilitate the individual adaption of the system according to the requirements of the patient. Thanks to its design, the system also facilitates the conversion of anatomic joint configurations into reverse configurations.

The LINK Embrace Shoulder System was launched onto CE market in August 2020.

Due to its high degree of inner compatibility and consistency, the LINK Embrace Shoulder System offers all relevant treatment options in only one implant system as well as a slim instrumentation consisting of just 7 sets. The simplicity and variability of the LINK Embrace Shoulder System are designed for easy intra-op handling for the surgeon and facilitated instrumentation for the nursing staff, aiming at convenient application and enhanced clinical outcomes.

DOWNLOADS




Embrace Catalogue

Download

Embrace Product Rationale

Download

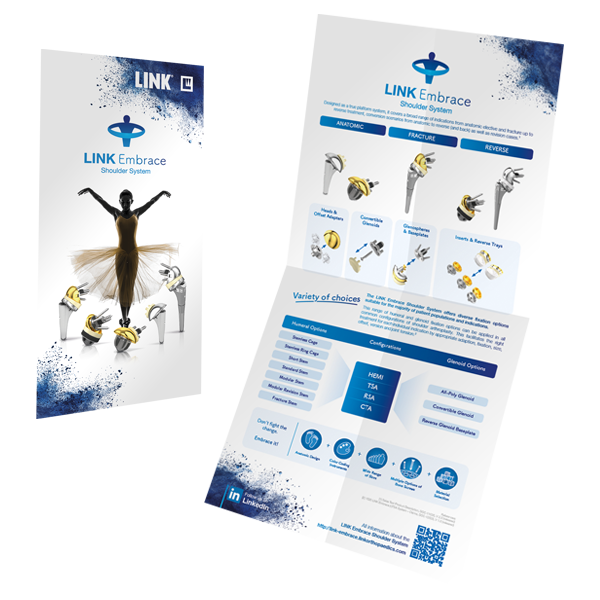

Embrace Teaserflyer

Download

Embrace directLINK 01/2021

Download

MEDICAL EDUCATION WEBINAR

EMBRACE


Learn more about our LINK Embrace Shoulder System! Dr. Pablo Cañete San Pastor from the Hospital de Manises, Valencia, Spain and Dr. Miguel Ruiz Ibán from the Hospital Ramón y Cajal, Madrid, Spain take you through the theory of anatomic and reverse shoulder arthroplasty and the LINK Embrace Shoulder System for proximal humerus fractures. They discuss interesting patient cases and provide valuable tips and tricks for the surgical technique.

VIEW MORE VIDEOS

Watch even further

VuMedi Upper Extremities - Waldemar Link Channel

October 10, 2022

The Surgical World of LINK Embrace Shoulder System

Live Stream + Surgical Demonstration


In this interactive TV event the treatment of complex indications will be demonstrated by leading international specialists on a human cadaveric specimen in a most realistic training environment. Our moderator Dr. Ruiz Ibán and speaker Dr. Arbogast will explore with you the world of this true platform system whilst commenting a live surgery performed by Dr. Cañete and Dr. Pietsch.
The international faculty will be discussing tips and tricks in the surgical technique of a stemless anatomic shoulder arthroplasty with convertible glenoid, as well as a reverse short stem surgery. You will be able to interact directly with our studio through polls
and open questions.

Mark this day in your calendars and make sure to be a part of The Surgical World of LINK Embrace Shoulder System!

Chairmen:

Dr. Miguel Ruiz Ibán
Chairman of the Shoulder and Elbow Unit at the
Department of Orthopaedic Surgery
University Hospital Ramón y Cajal,
Madrid, Spain

Dr. Pablo Cañete
Head of Department of Orthopedic Surgery
and Traumatology
Hospital de Manises
Valencia, Spain

Dr. Stefan Pietsch
Head of Departement of Sports Orthopedics,
Shoulder and Arthroscopic Surgery,
German Center for Orthopedics,
Waldkliniken Eisenberg, Germany

Dr. Martin Arbogast
Chief Physician of Orthopaedic Surgery
and Hand Surgery with Focus on
Orthopaedic Rheumatology
Waldburg-Zeil Kliniken
Oberammergau, Germany

Save the date and register now!

Since 2010, the LINKademy provides a platform for in-depth discussions on new, sophisticated treatments methods and innovative surgical techniques are discussed in depth. Specialist knowledge is passed on and practical experience of new methods and products can be obtained.

Join our courses on the LINK Embrace Shoulder System and expand your knowledge and expertise by sharing your thoughts and questions with renowned international experts in shoulder arthroplasty.

See all the Embrace events in our LINKademy calendar

Visit the LINKademy Calendar
